Application

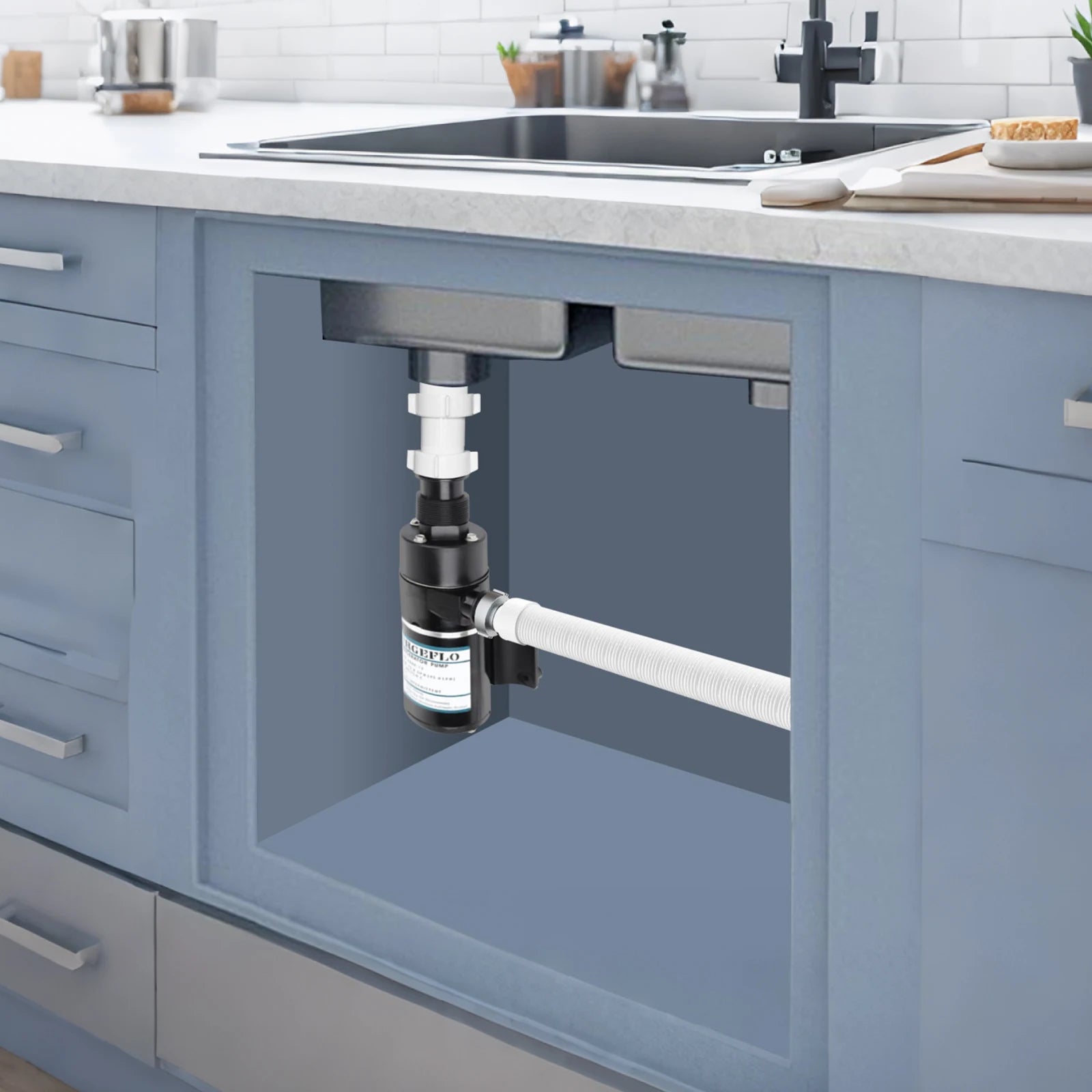

The product can be used for livestock farms, mobile sewage equipment, kitchen waste, etc. and can be used in RVs.

Installation
1. Install the hose at the water inlet and outlet.
2. Rotate the upper clamp to seal tightly.
3. Then connect the 12V20A or more power adapter, and the installation is complete.

Specification
Model: MP-4500
Material: PA66, 30% Glass Fiber, Rubber, 304 Stainless Steel
Color: Black
Voltage: 12V
Frequency: 50 Hz
Current: 9.5A
Rotational Speed: 2900RPM
Insulation Grade: Grade E
Operating Noise: 55-60 db
Medium Temperature: 0-65℃/32-149℉
Ambient Temperature: ≤50℃/122℉
Medium PH: 5.0-7.5
Wiring Method: Double-core Wire
Flow Rate: 32 LPM/8.45GPM
Suction Range: 1 m/3.28ft
Head: 3m/9.84ft
Power: 114W
Inlet Pipe Inner Diameter: 38.98 mm/1.5in
Inner Diameter Of Outlet Pipe: 28 mm/1.1in
Control Method: Power Switch
Gross Weight: 2.4kg/5.3lbs
Net Weight: 2.1kg/4.63lbs
Package Size: 32*13.5*11cm/12.6*5.3*4.3in

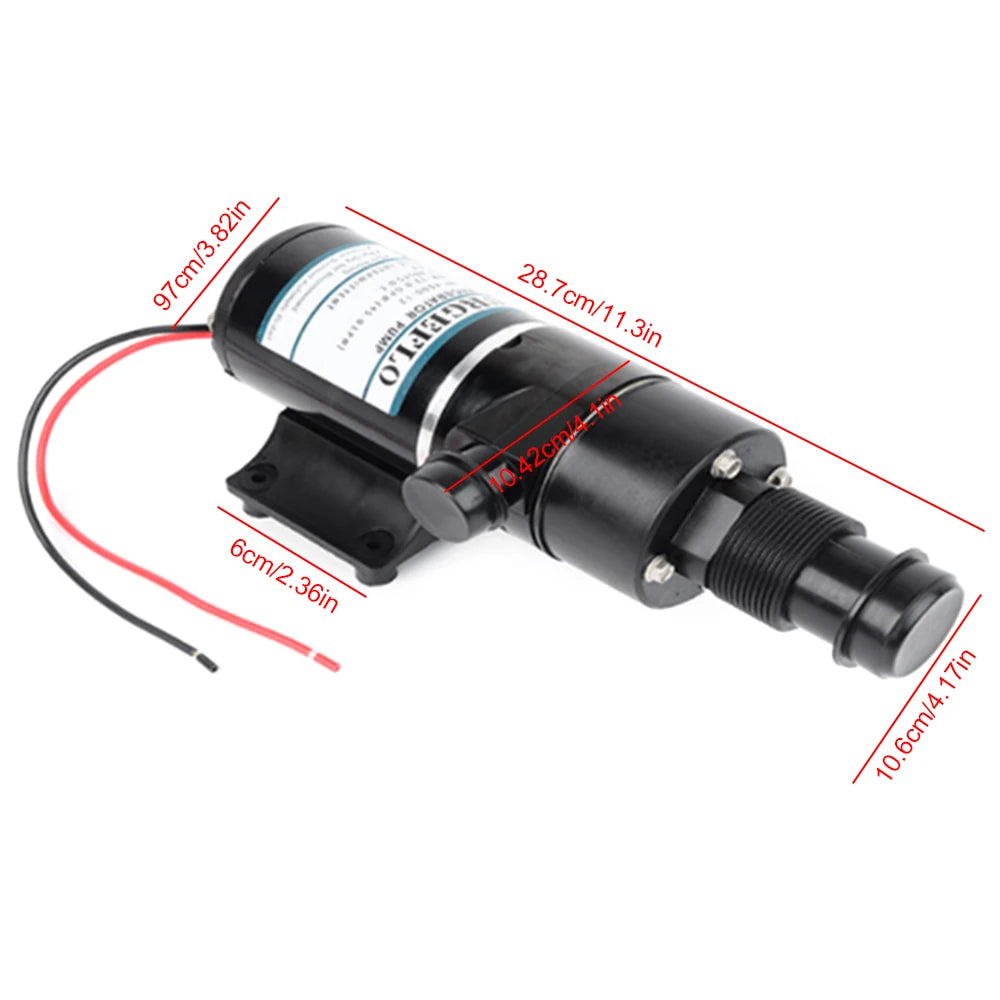

Product Size: 28.702*10.423*10.612 cm/11.3*4.103*4.178 in

Package Included
1*RV Macerator Pump
1*English User Manual

Notes
1.Please do not use it for pumping hair, sanitary napkins and other liquids with a line containing debris to prevent the blade from being entangled in the line.
2.This water pump with 12V DC voltage needs to be equipped with an adapter to supply power if it is used at home.
3.A small amount of water needs to be injected into the water inlet for the first time. If the product has not been used for a long time, it needs to be filled with water and then used again. After using it, you do not need to clean it.
4.It is better to be installed horizontally. Please do not install it downward, and other angles are possible.
5.For other size information, please refer to the size chart.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
